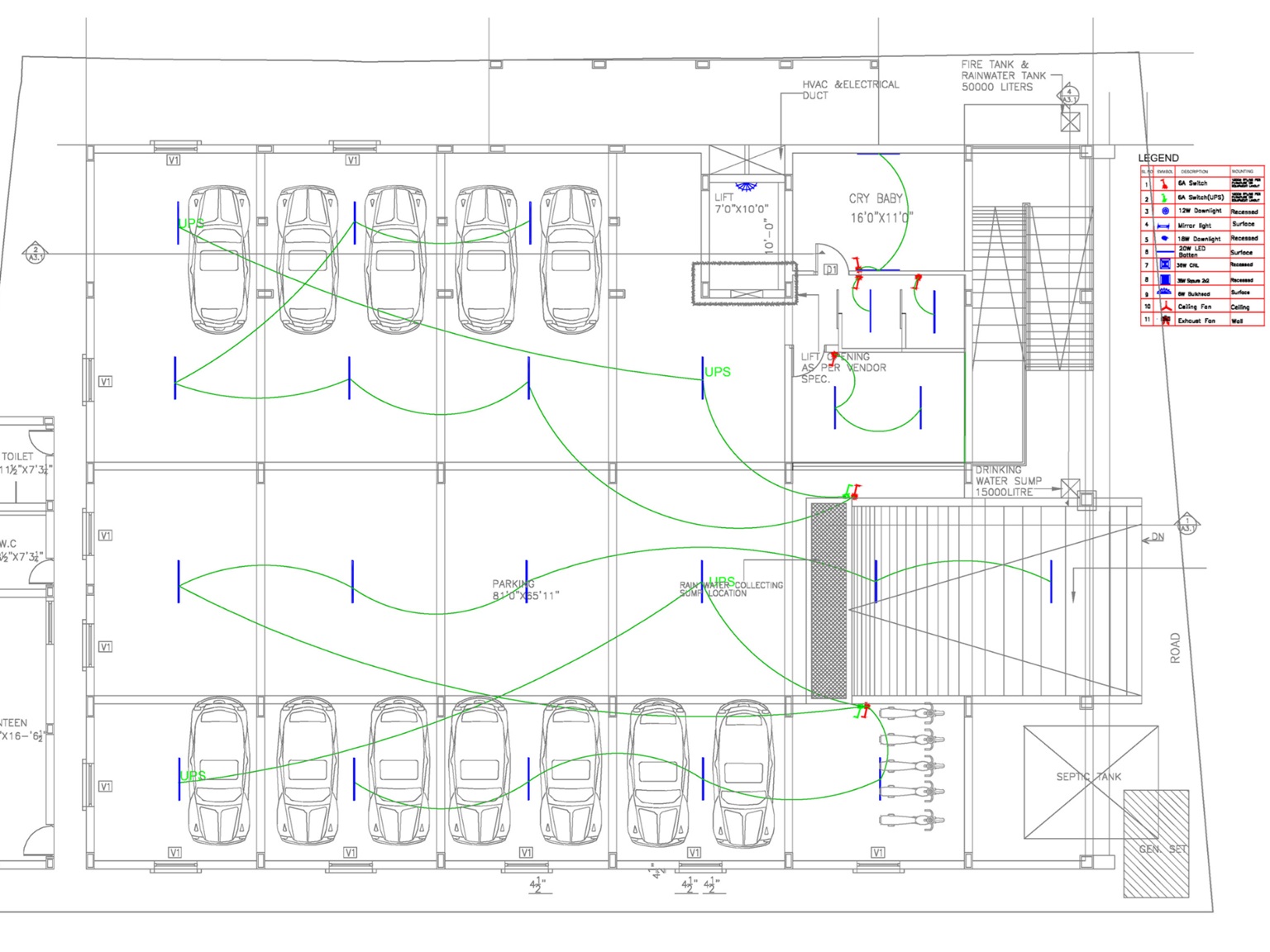

The electrical lighting layout for a hospital building in Trivandrum has been prepared, detailing the electrical lines, switchboards, and light points. The above diagram specifically illustrates the setup for the car parking area.

20W LED batten lights were selected for this area,, with an 8W bulkhead lamp additionally provided in the lift area.

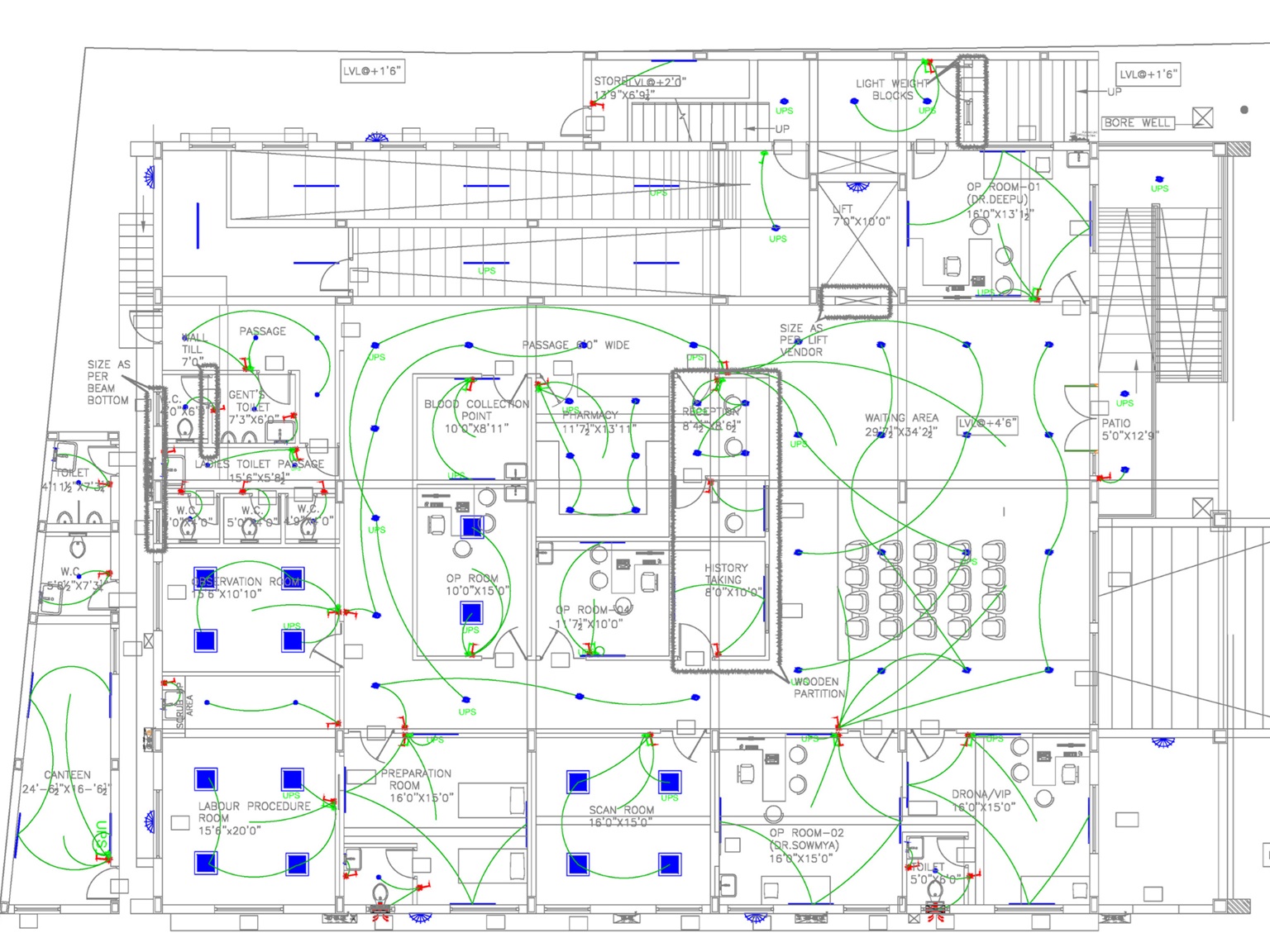

The ground floor lighting layout includes 38W square lights (2x2 size) in key areas like the OP room, scanning room, and labor procedure room. The waiting area, passages, and reception area feature 12W downlights, while the staircase areas are equipped with 20W LED batten lights.

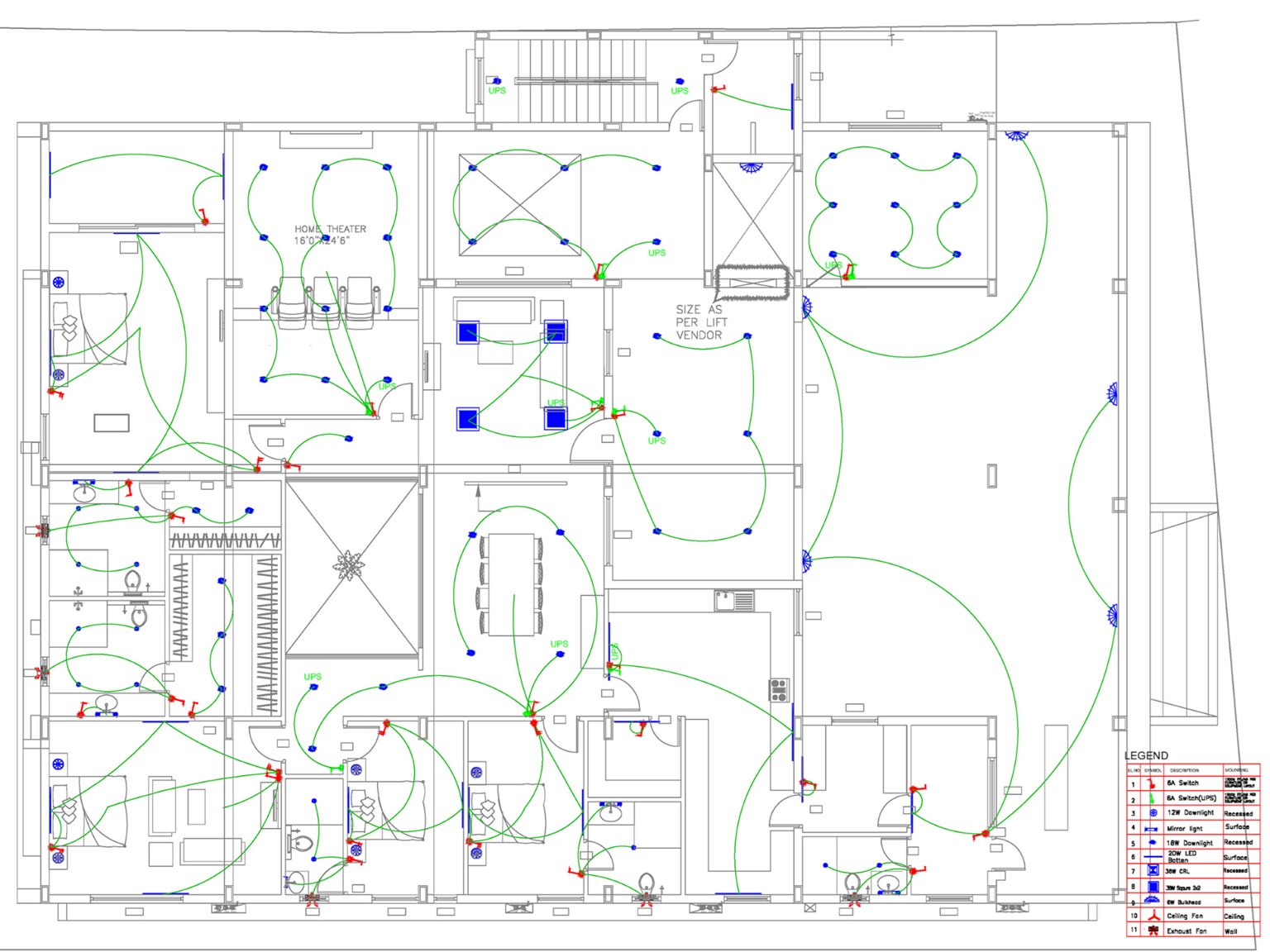

18W downlights are installed in most areas on the first floor, along with 20W LED battens on the walls for additional lighting.

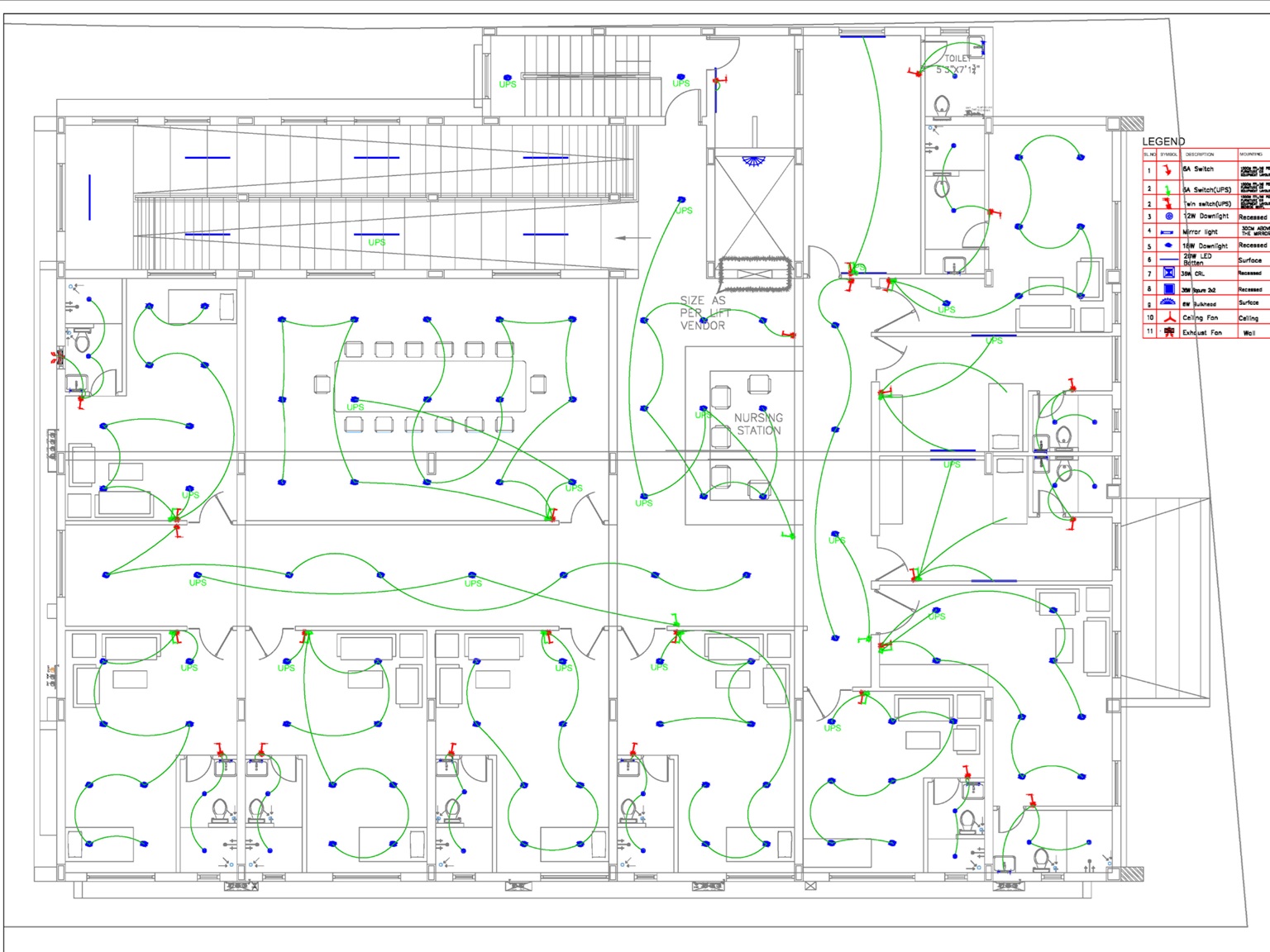

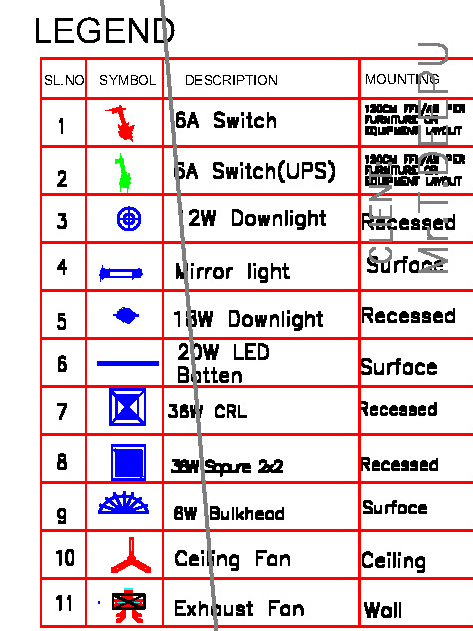

The diagram indicates 18W downlights, 20W LED battens, and 8W bulkhead lights, ensuring appropriate lighting for each area of the second floor.

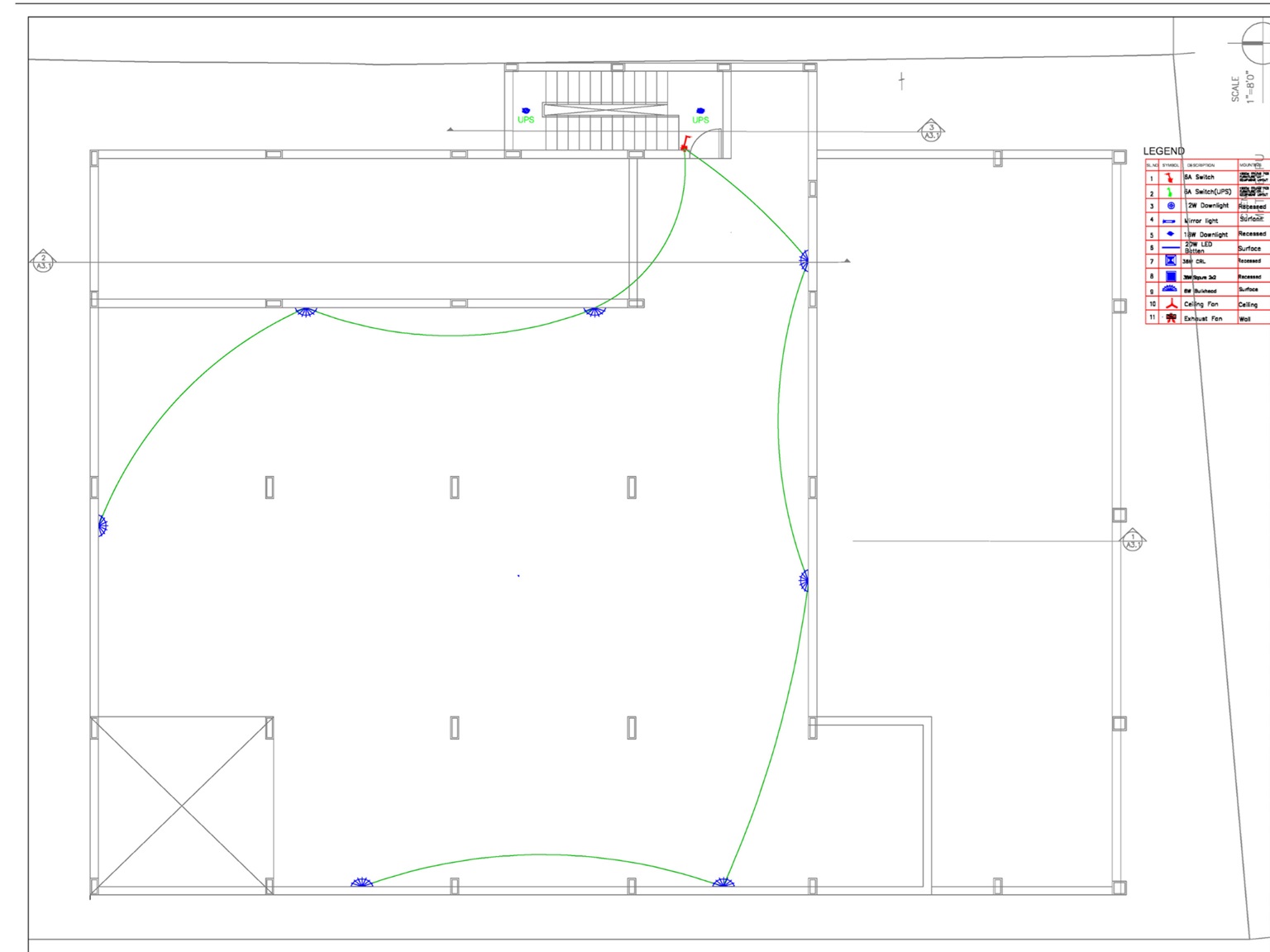

8W bulkhead lights were installed along the terrace walls for uniform illumination.
